How to Upgrade Computer RAM: A Complete Step-by-Step Guide

Is your computer feeling sluggish, struggling to keep up with multiple tabs, or stuttering during gameplay? Before you consider buying a new machine, the answer might be a simple, cost-effective fix. Learning how to upgrade computer ram can dramatically boost your PC’s performance, and it’s easier than you think.

Signs You Need a RAM Upgrade

Before you proceed, let’s confirm that RAM is your actual bottleneck. You’re likely in need of an upgrade if you experience:

• Constant Freezing or Lag: Routine tasks like opening files or switching between browser tabs cause your system to hang.
• Poor Performance in Specific Apps: Video editing software, complex spreadsheets, or modern games run poorly or crash.
• System Sluggishness with Multiple Programs Open: Your computer runs fine with one application, but slows to a crawl as soon as you open several more.
• “Your computer is low on memory” Warnings: Your operating system is explicitly telling you it’s running out of resources.

What is RAM and Why Should You Upgrade It?

Think of RAM (Random Access Memory) as your computer’s short-term memory. It’s where your PC temporarily stores all the data it’s actively working on. The more RAM you have, the more tasks you can juggle simultaneously without slowing down.

Upgrading your RAM is one of the most impactful upgrades you can make, resulting in:

• Smoother Multitasking: Effortlessly switch between your browser, applications, and games.
• Improved Gaming Performance: Reduce stuttering and load times in memory-intensive games.
• Faster Application Response: Watch as demanding software like video editors or design suites load and operate more quickly.

How to Upgrade Computer RAM

Part 1: The “Before You Begin” Preparation

Jumping straight into the installation is a recipe for frustration. First, proper preparation is key to ensuring you buy the right components and have a smooth upgrade process.

Step 1: Check Your Current System Specifications

You need to know what you currently have to know what you need.

• On Windows 10/11:
  1. Right-click the Taskbar and select Task Manager.
  2. Click on the “Performance” tab.
  3. Select “Memory” from the left-hand menu. Here, you’ll see the total amount of RAM, its speed (e.g., 3200MHz), and how many slots are currently in use.

• On macOS:
  1. Click the Apple logo in the top-left corner.
  2. Select “About This Mac”.
  3. The overview screen will show you the total amount and type of RAM (e.g., 16 GB 2667 MHz DDR4).

Step 2: Determine Your Motherboard’s Maximum RAM & Type

Your computer’s motherboard dictates the type and amount of RAM it can handle. For an easy method, use a reliable system scanning tool like the Crucial® System Scanner, which analyzes your system and provides compatible upgrade options.

1. DDR Generation

It is important to know DDR generation of your motherboard. Most motherboard supported DDR4 in recent model. Nowadays, DDR3 (or below) is considered old and obsolete.

Old DDR generation RAM will not be compatible with motherboard that built to support newer DDR generation. Newer DDR generation will not be compatible with motherboard that built to support older DDR generation.

2. Maximum Capacity

Though your CPU and OS supported max RAM until 32GB/64GB/128GB, not all motherboard support high capacity RAM. You need to check with your motherboard manufacturer to check maximum supported RAM capacity.

3. Maximum clock speed

High speed RAM is not always better. You Memory speed is limited, particularly with some low-end and mainstream Intel CPUs and chipsets.

Let’s say if your system only support 2,666MHz, there is no use to buy RAM with 3,200MHz clock speed. You either waste money, damaging or crippling your system performance. You may need to check if the motherboard and CPU supported the RAM speed.

If you’re building your computer for gaming, it’s far better to have dedicated graphic cards rather than spent lot of money on high speed RAM.

Below are the clock speed based on DDR:

4. Available Slot

It is important to know how many slots available on your motherboard. Reason is, if you want to upgrade to 16GB of RAM, you need to decide either need to buy 1x16GB, 2x8GB or 4GB. This also contribute on decision on either you can upgrade your RAM or need to replace the RAM.

Bear in mind, there is also motherboard already had RAM soldered into it. Which you can’t replace or remove it.

Overall on motherboard compatibility, it is best recommended to always visit official manufacturer site to verify on compatibility on RAM.

Step 3: Choosing and Buying the Right RAM

When buying new RAM, aim to buy a matched “kit” of two or four modules. This ensures the sticks have been tested to work together perfectly.

Understanding Key RAM Terminology

Speed (MHz): This measures how quickly the RAM can read and write data. A higher number is better, but it must be compatible with your motherboard.

Channels (Dual, Quad): Motherboards have memory channels. Using two identical RAM sticks in a dual-channel motherboard (the most common setup) essentially doubles the data transfer bandwidth. This is why buying a “kit” is so important.

Latency (CL): CAS Latency measures the delay before RAM responds to a command. Here, a lower number is better (e.g., CL16 is faster than CL22).

Part 2: Gathering Your Tools & Preparing Your Workspace

• A Phillips-head screwdriver.
• Your new RAM modules.
• A clean, well-lit workspace.
• An anti-static wrist strap (highly recommended).

A Note on Warranty and Static Discharge

Be aware that opening your PC or laptop case may void your warranty with some manufacturers. Furthermore, the risk of static discharge is real and can permanently damage your components.

CRUCIAL SAFETY WARNING: Static electricity is the silent enemy of computer components. Before touching anything inside your PC, you must ground yourself. You can do this by touching a large, unpainted metal object or by wearing an anti-static wrist strap.

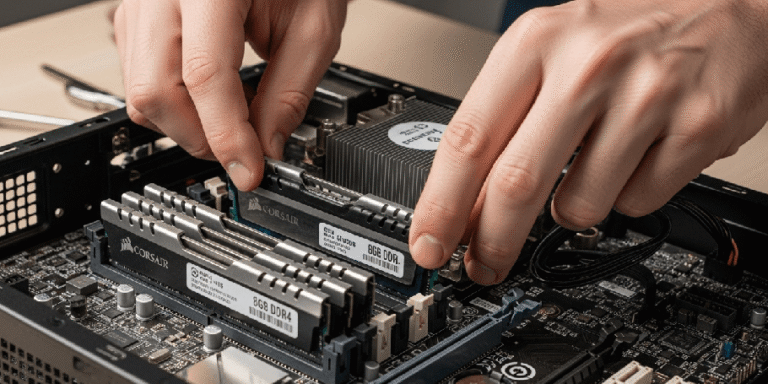

Part 3: How to Install RAM in a Desktop PC (Step-by-Step)

1. Power Down and Unplug: Shut down your PC and unplug all cables.
2. Open the Case: Remove the side panel.
3. Ground Yourself: Put on your anti-static wrist strap.
4. Locate the RAM Slots: Look for the long, thin slots near the CPU cooler.
5. Remove the Old RAM: Gently push down on the clips at both ends of the RAM stick. The clips will pop open, and the module will tilt upward, ready to be lifted straight out.


Pro Tip: Which RAM Slots to Use for Dual-Channel Performance

If you have four RAM slots and are installing two sticks, do not place them right next to each other.

Check your motherboard’s manual, but for most boards (Intel and AMD), you should install them in the second and fourth slots away from the CPU (often labeled A2 and B2).

This configuration enables dual-channel mode for a significant speed boost.

6. Align and Insert the New RAM: Align the notch on the bottom of the RAM stick with the divider in the correct slot. Press down firmly and evenly on both ends until the retention clips on the sides click back into place.
7. Close Up the Case: Re-attach the side panel and reconnect all your cables.

Part 4: How to Install RAM in a Laptop (Step-by-Step)

1. Power Down and Unplug: Shut down the laptop, unplug it, and remove the battery if external.
2. Access the RAM: Flip the laptop over and unscrew the panel covering the RAM.
3. Ground Yourself: Touch a metal object to discharge any static.
4. Remove the Old RAM: Gently push the spring-loaded side clips outward; the stick will pop up at an angle. Slide it out.
5. Insert the New RAM: Slide the new stick into the slot at a 45-degree angle, then gently press it down until the clips snap into place.
6. Reassemble: Screw the access panel back on.

Part 5: After the Installation: Verification and Full Speed

Now for the moment of truth. Power on your computer.

• Step 1: Check if the RAM is Recognized: As your computer boots, press the designated key (often Del, F2, or F12) to enter the BIOS/UEFI. The main screen should report the new, correct amount of installed memory. This confirms the hardware is working.
• Step 2: Enable XMP/EXPO for Full Speed (Crucial Step): Your new RAM will likely run at a slower, standard speed by default. To unlock the full speed you paid for, you must enable a memory profile. In the BIOS, look for a setting called XMP (Extreme Memory Profile) for Intel systems or EXPO (Extended Profiles for Overclocking) for AMD systems. Enable it, save your settings, and exit the BIOS.

Part 6: Troubleshooting Common Problems

Problem: My computer won’t boot, or I hear beeping sounds.
Solution: This is almost always a seating issue. Power down, unplug, and firmly reseat each RAM module until you hear the clips click.

Problem: My computer turns on, but the screen is black.
Solution: This can also be a seating issue. If that fails, try installing just one stick of the new RAM in the primary slot (A2) to identify if one of the modules is faulty.

Frequently Asked Questions (FAQ)

Conclusion: A Worthy and Simple Upgrade

Congratulations! You’ve just completed one of the easiest and most rewarding PC upgrades possible. By carefully preparing, safely handling your components, and following these expert steps, you’ve given your computer a significant performance boost that you’ll feel immediately.

Enjoy the smoother, faster experience! If this guide helped you, consider sharing it with a friend. Have any questions or a success story to share? Drop a comment below!
